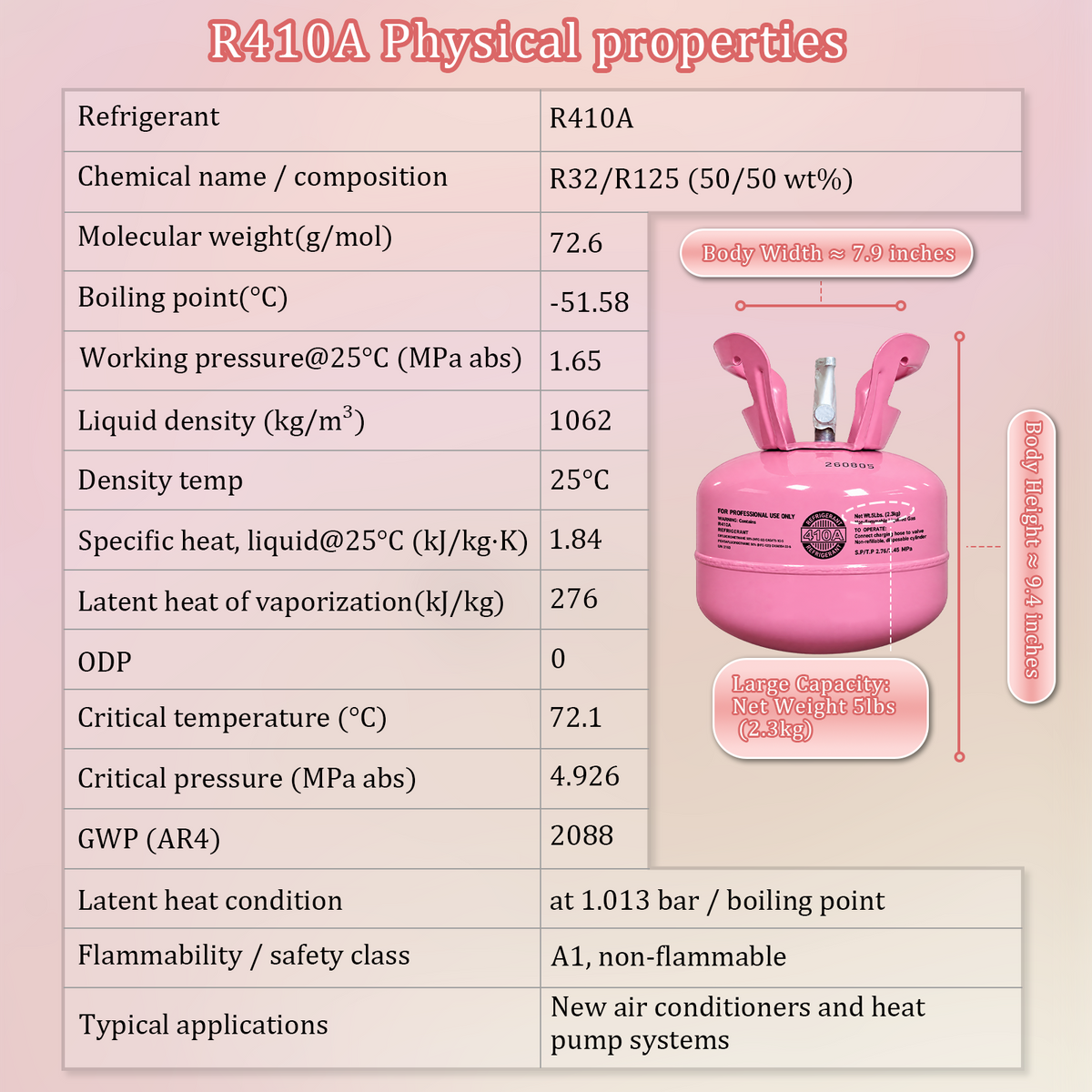

Key Specifications

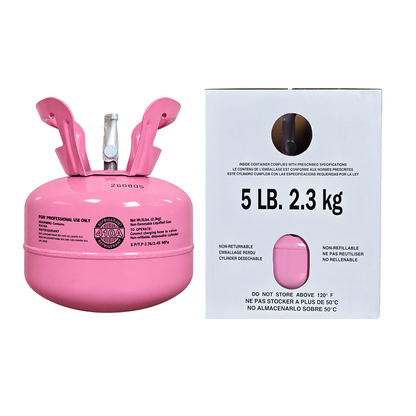

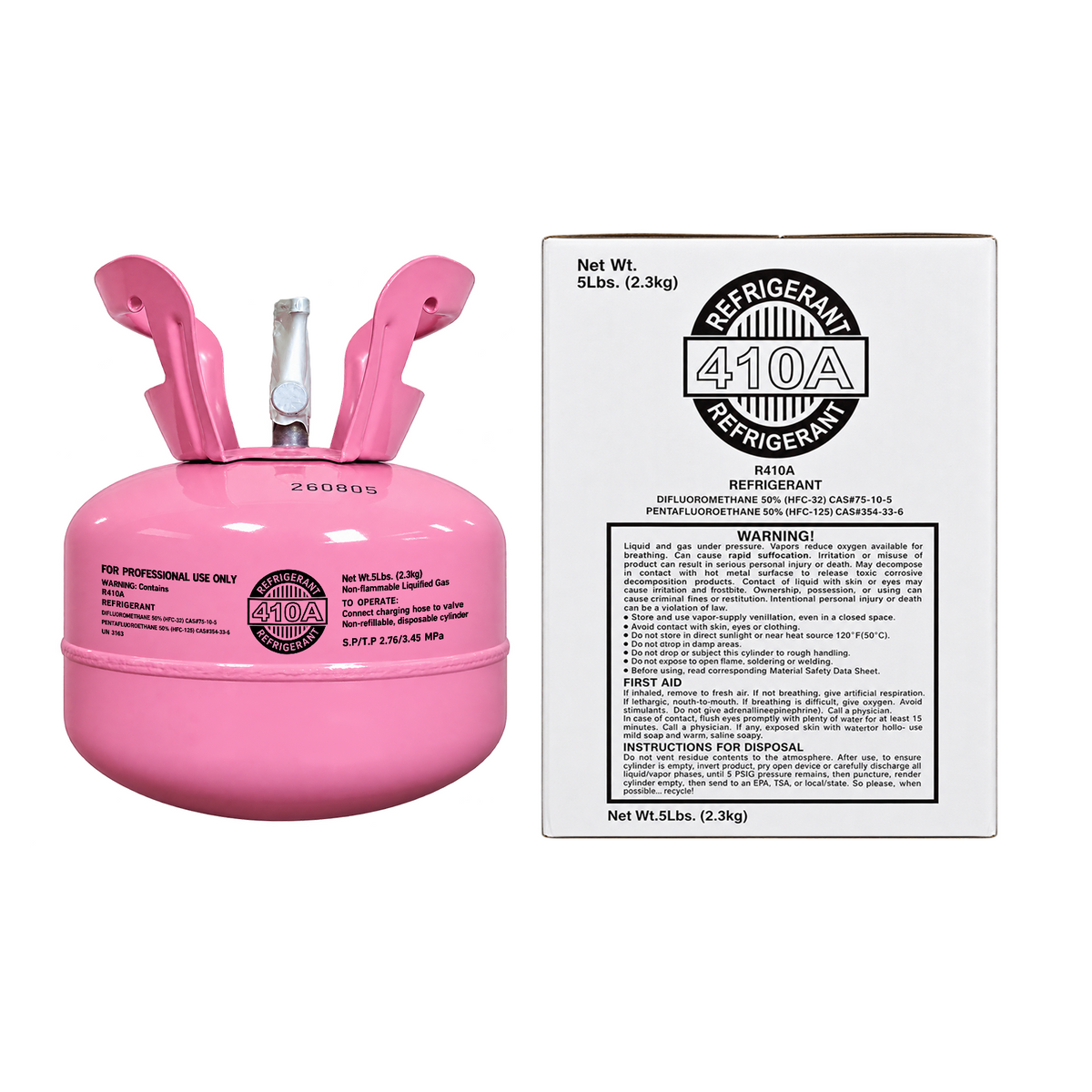

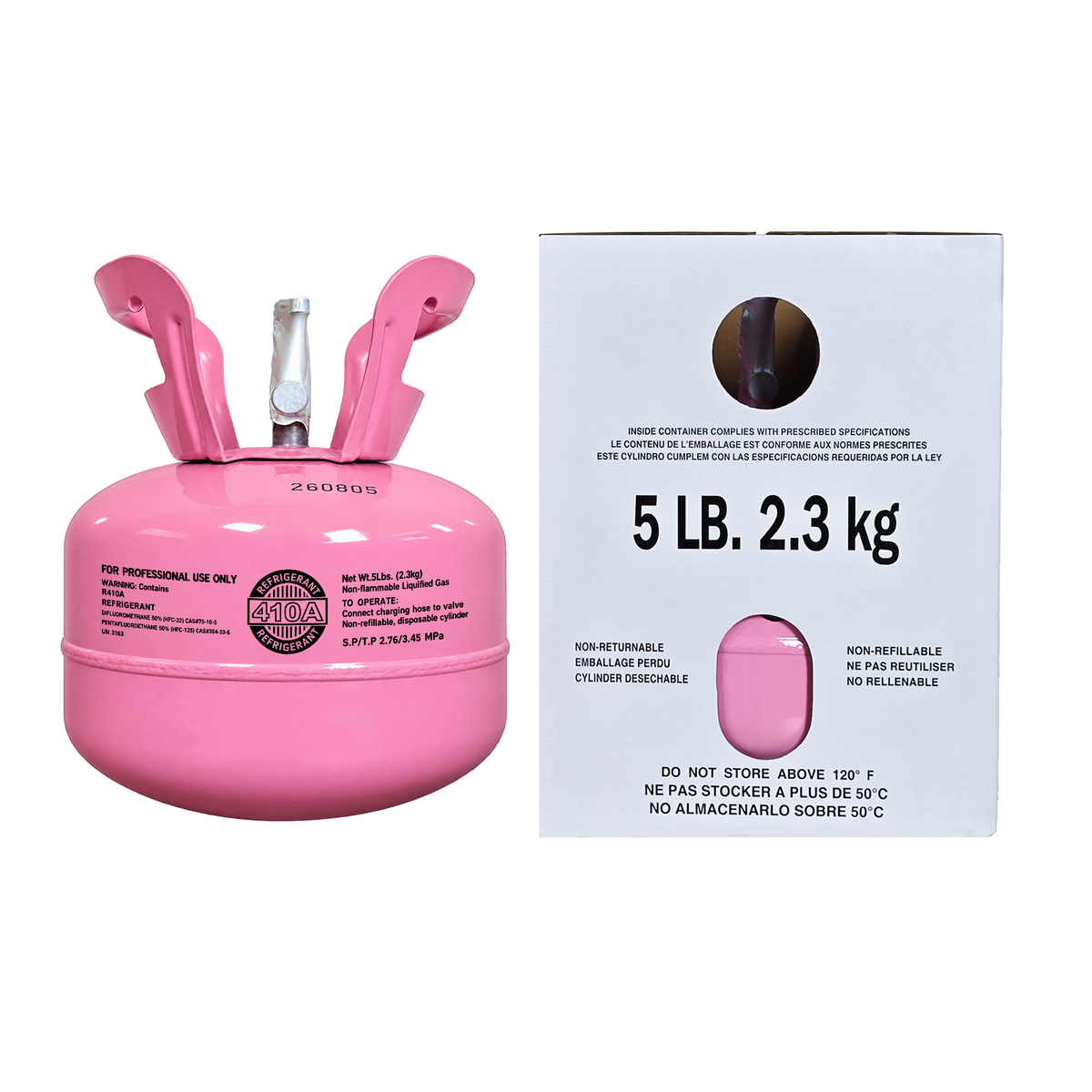

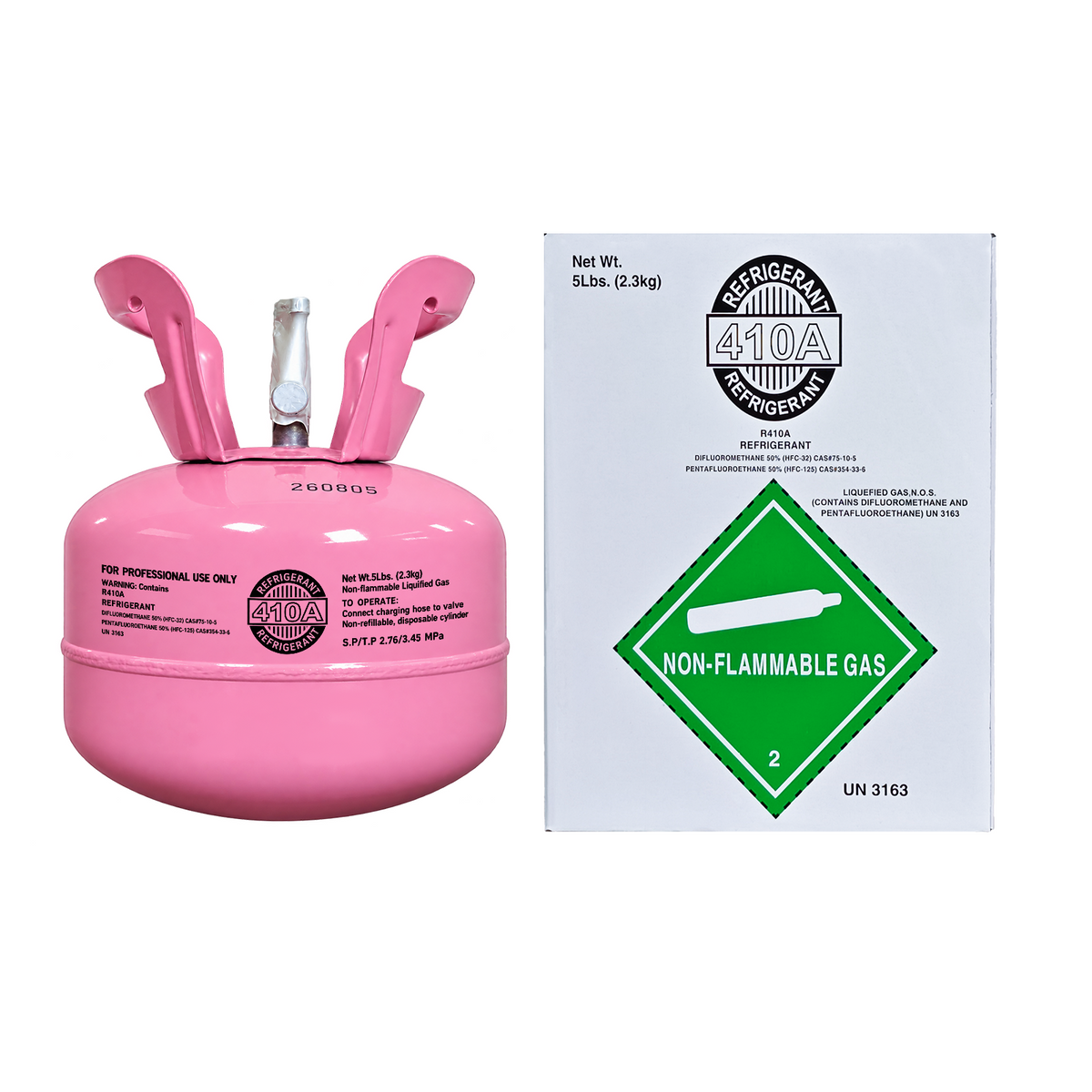

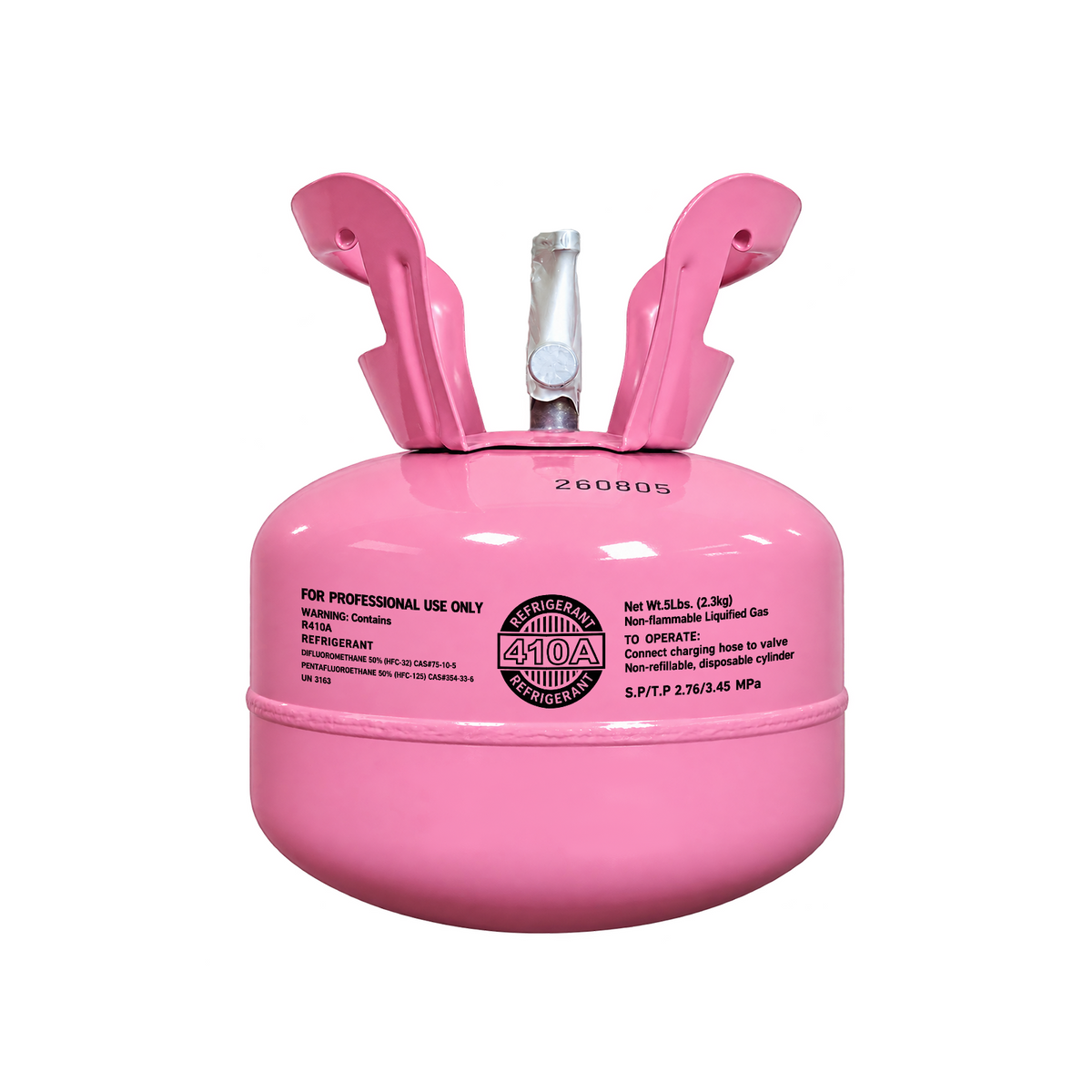

This compact 5 lb R-410A refrigerant cylinder is designed for compatible air conditioning and heat pump systems, ideal for smaller repairs, maintenance, and refrigerant top-offs.
Chemical name: Difluoromethane / Pentafluoroethane
Chemical formula: R32 / R125 (50/50 wt%)
Molecular weight: 72.6
Boiling point: -51.58°C
Liquid density at 25°C: 1062 kg/m³
Critical temperature: 72.1°C
Critical pressure: 4.926 MPa abs
Safety class: A1, non-flammable
GWP (AR4): 2088
ODP: 0
Typical applications: Air conditioning, heat pump systems, and compatible cooling equipment
Approx. cylinder size: 9.4 in height × 7.9 in width
Net weight: 5 lbs (2.3 kg)
Product Features

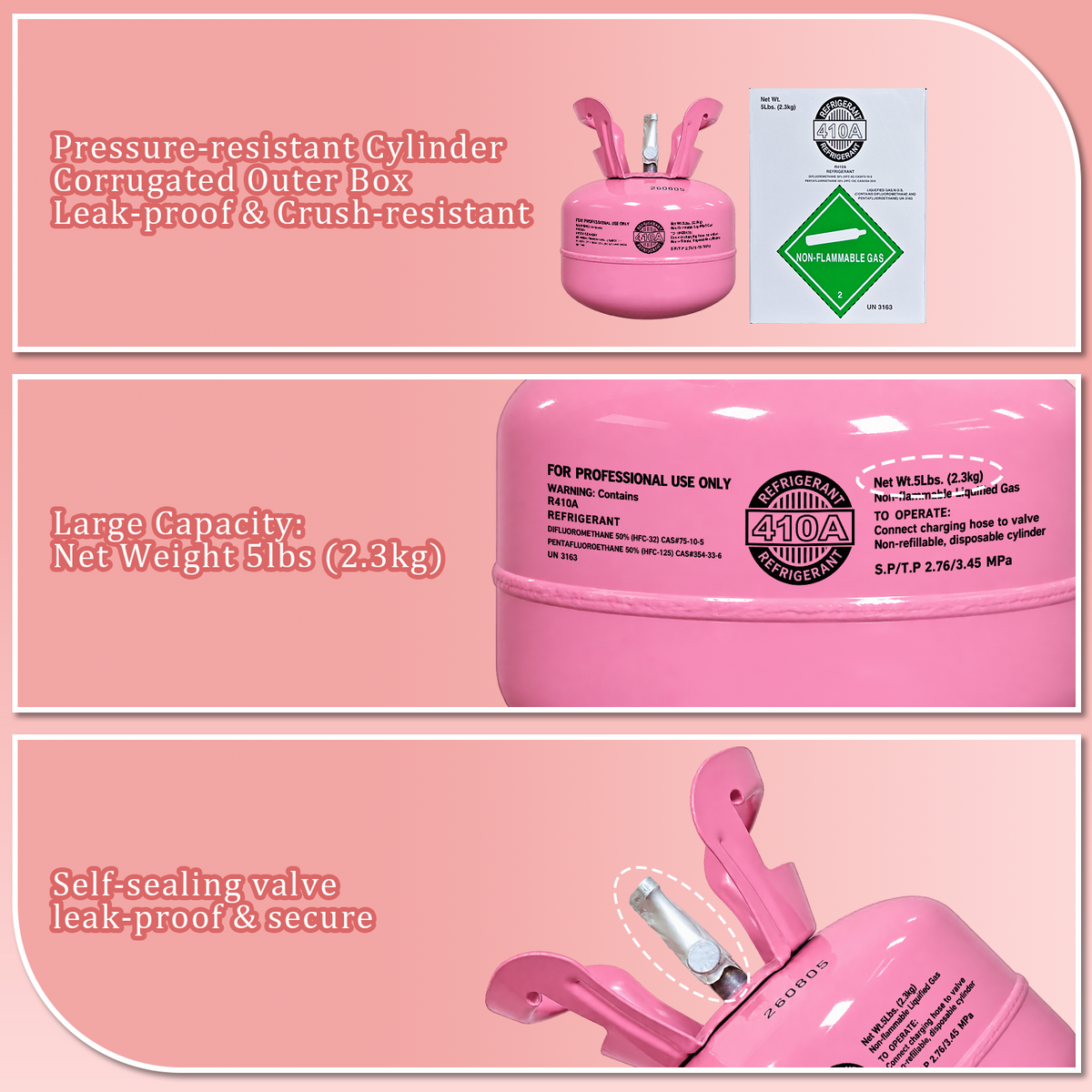

Pressure-Resistant Cylinder: The R-410A cylinder is built with a pressure-resistant structure to support stable handling during transportation, storage, and routine service use. This design helps reduce the risk of deformation caused by external pressure.

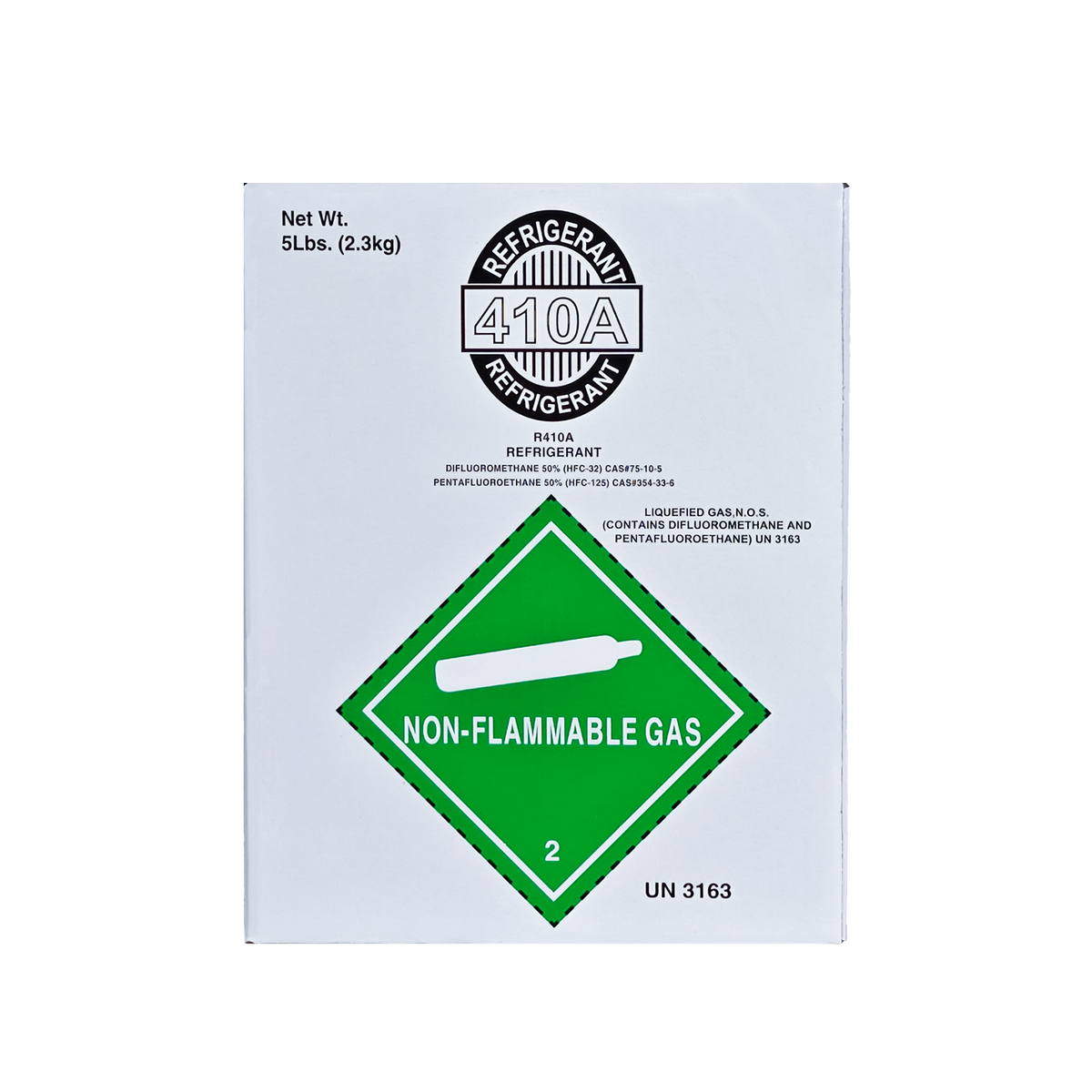

Corrugated Outer Box: A corrugated outer box provides extra protection during shipping and warehousing. It helps reduce scratches, dents, and other surface damage while the product is being moved or stacked.
Protective Packaging: Leak-proof and crush-resistant packaging gives the cylinder added protection in transit. This helps the product arrive in better condition and lowers the risk of avoidable shipping damage.
5 lb Net Weight: Net weight 5 lbs (2.3 kg), suitable for smaller repairs, maintenance, and refrigerant top-offs in compatible R-410A air conditioning and heat pump systems.
Self-Sealing Valve: The self-sealing valve design supports safer storage and easier handling. It helps reduce the chance of unintended leakage during storage or service preparation.
Protective Top Collar: The top collar helps shield the valve area from impact during movement and storage, making the cylinder easier to handle and better protected overall.
Usage Scenarios

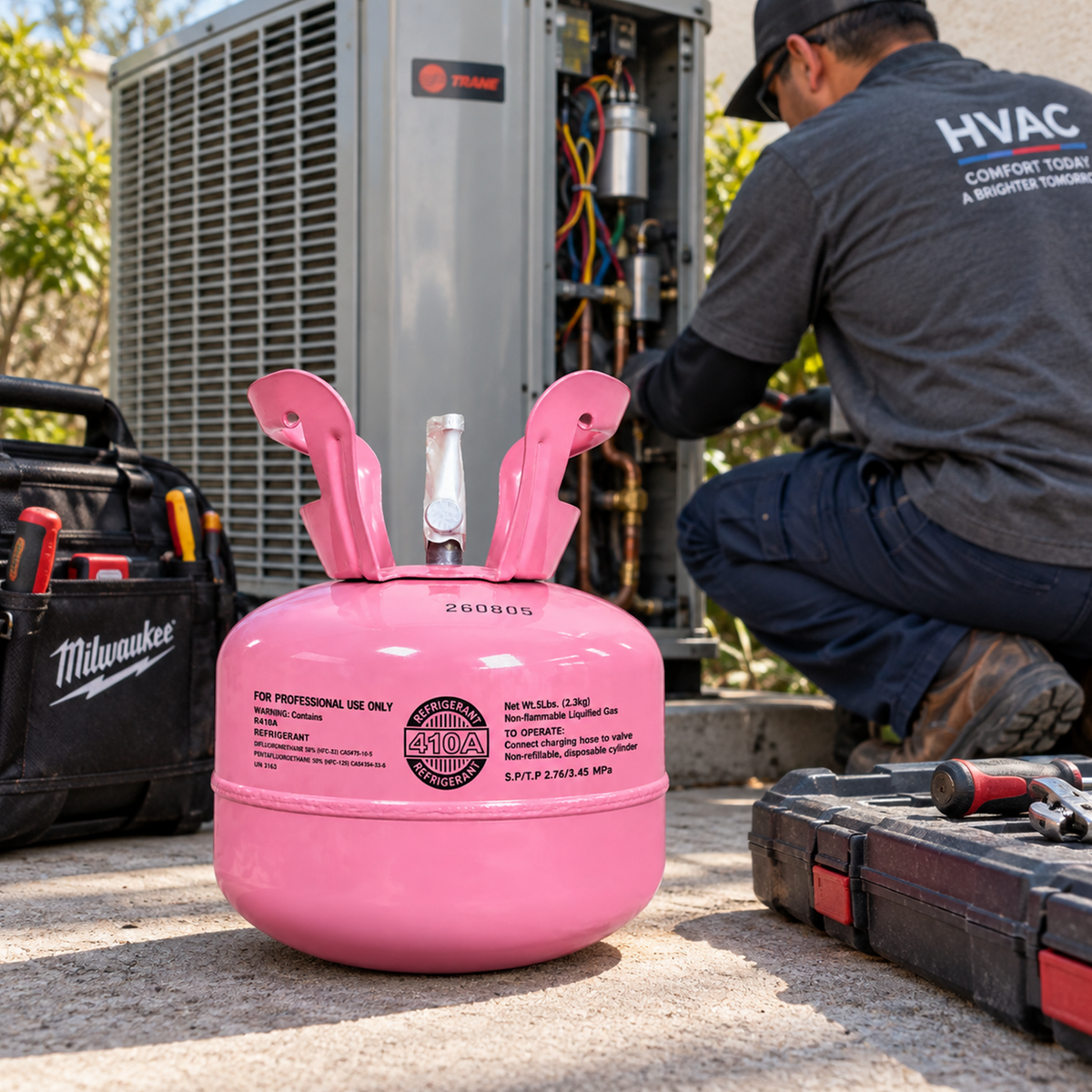

Residential Air Conditioning Systems: This 5 lb R410A refrigerant cylinder is suitable for servicing compatible residential air conditioning systems designed for R410A. Its compact size is convenient for smaller repairs, routine maintenance, and minor refrigerant top-offs.
Heat Pump Systems: R410A is commonly used in residential and light commercial heat pump systems for both cooling and heating. The 5 lb capacity offers a convenient option for smaller service jobs on compatible equipment.
Light Commercial HVAC Equipment: In compatible light commercial applications, R410A is used in rooftop units, packaged systems, and other HVAC equipment. The smaller cylinder is practical for maintenance and repairs requiring limited refrigerant quantities.
These are common examples of where R410A may be used. Actual use depends on system design, equipment requirements, and refrigerant compatibility. Buyers should always confirm the correct refrigerant type for their specific application before purchase or use.
Important Notes for Use
Professional Service Handling: This compact 5 lb R410A cylinder is convenient for smaller HVAC repair jobs, routine maintenance, and minor refrigerant top-offs. Charging and servicing should be performed by qualified technicians using appropriate service equipment.
Proper Equipment and Procedures: During service, gauges, hoses, and tools rated for R410A pressure should be used. R410A should be charged as a liquid following manufacturer instructions to maintain the correct refrigerant composition.
Storage and Safety Attention: The 5 lb cylinder is easier to carry and store than larger cylinders. Keep it in a cool, dry, well-ventilated area, away from direct sunlight and heat sources. Always confirm system compatibility and follow proper safety procedures.
