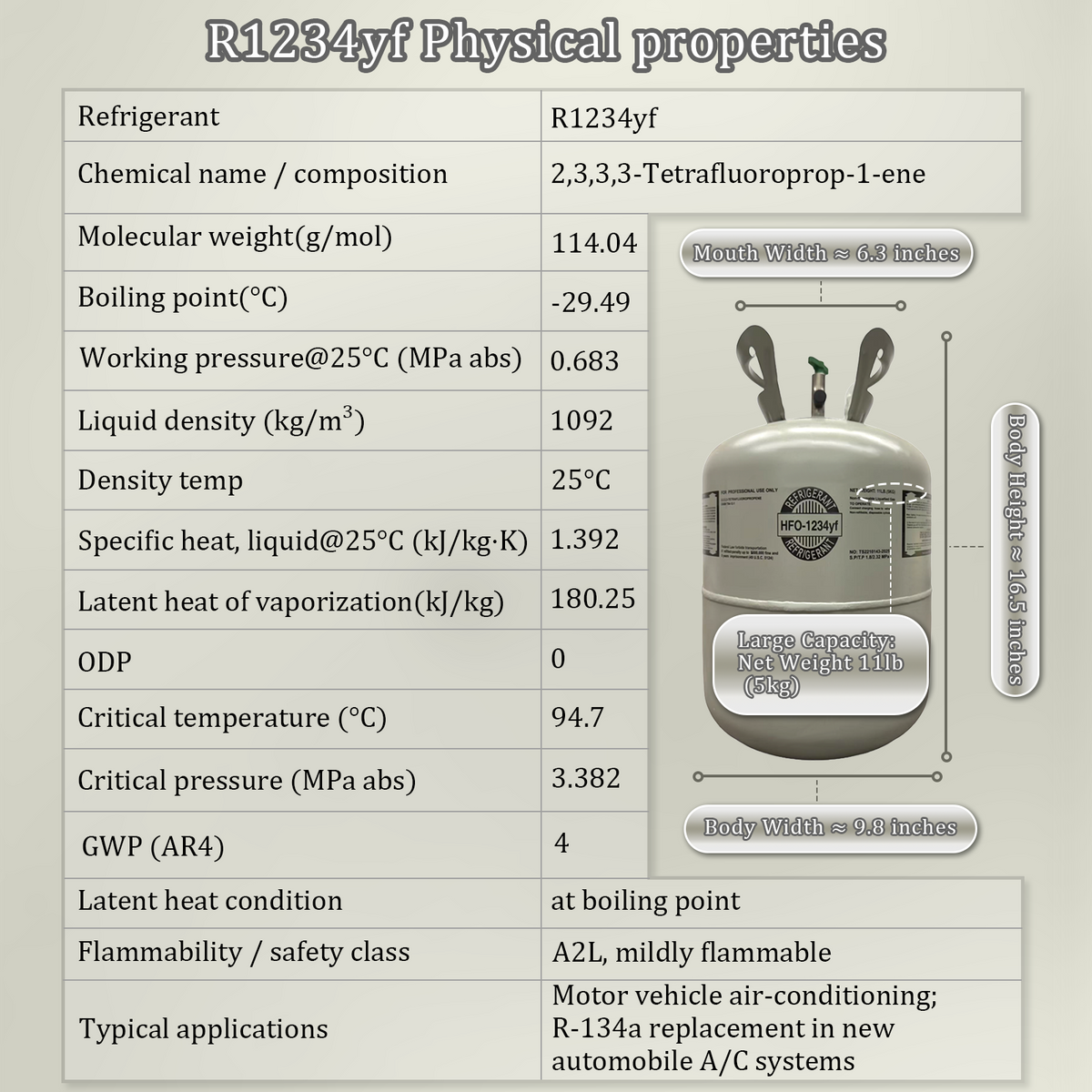

Key Specifications

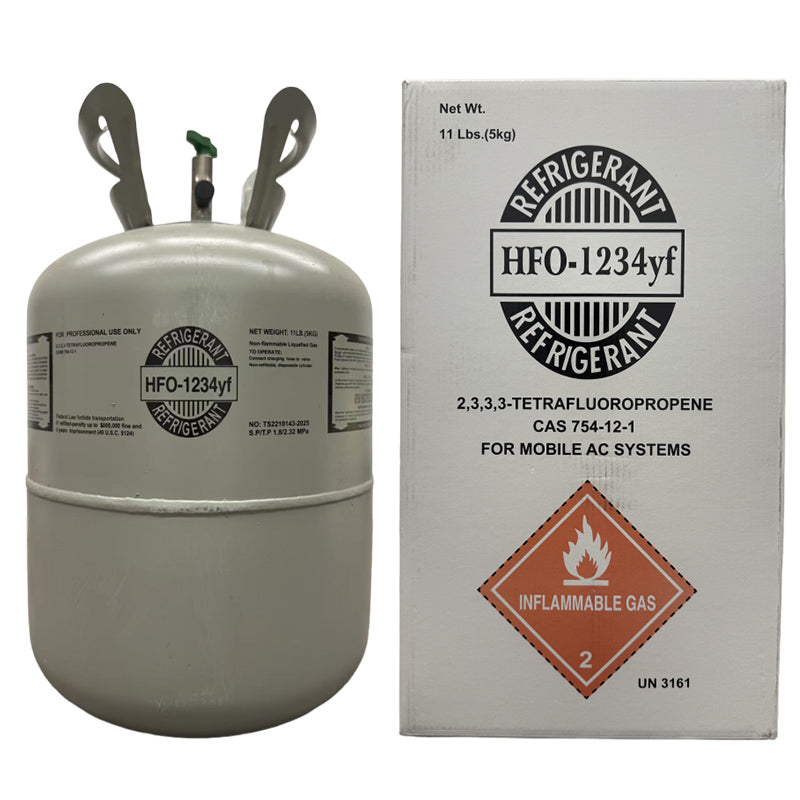

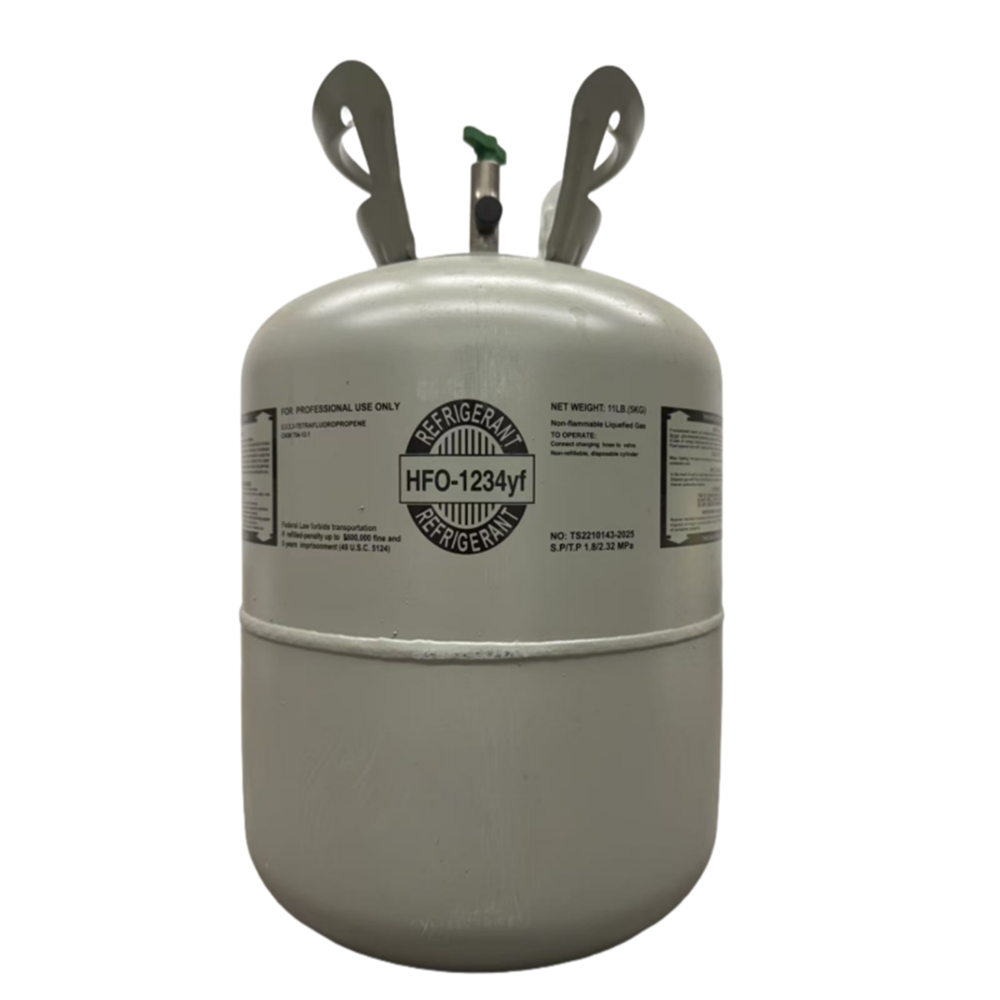

This R1234yf refrigerant cylinder is designed for modern automotive air-conditioning systems and approved replacement applications where R1234yf is required.
Chemical name: 2,3,3,3-Tetrafluoroprop-1-ene
Chemical formula: C3H2F4
Molecular weight: 114.04
Boiling point: -29.5°C
Liquid density at 25°C: 1092 kg/m³
Critical temperature: 94.7°C
Critical pressure: 3.382 MPa abs
Safety class: A2L, mildly flammable
GWP (AR4): 4
ODP: 0
Typical applications: Automotive A/C systems and R134a replacement in new vehicles
Approx. cylinder size: 16.5 in height × 9.8 in width
Mouth width: 6.3 in
Net weight: 11 lbs (5 kg)

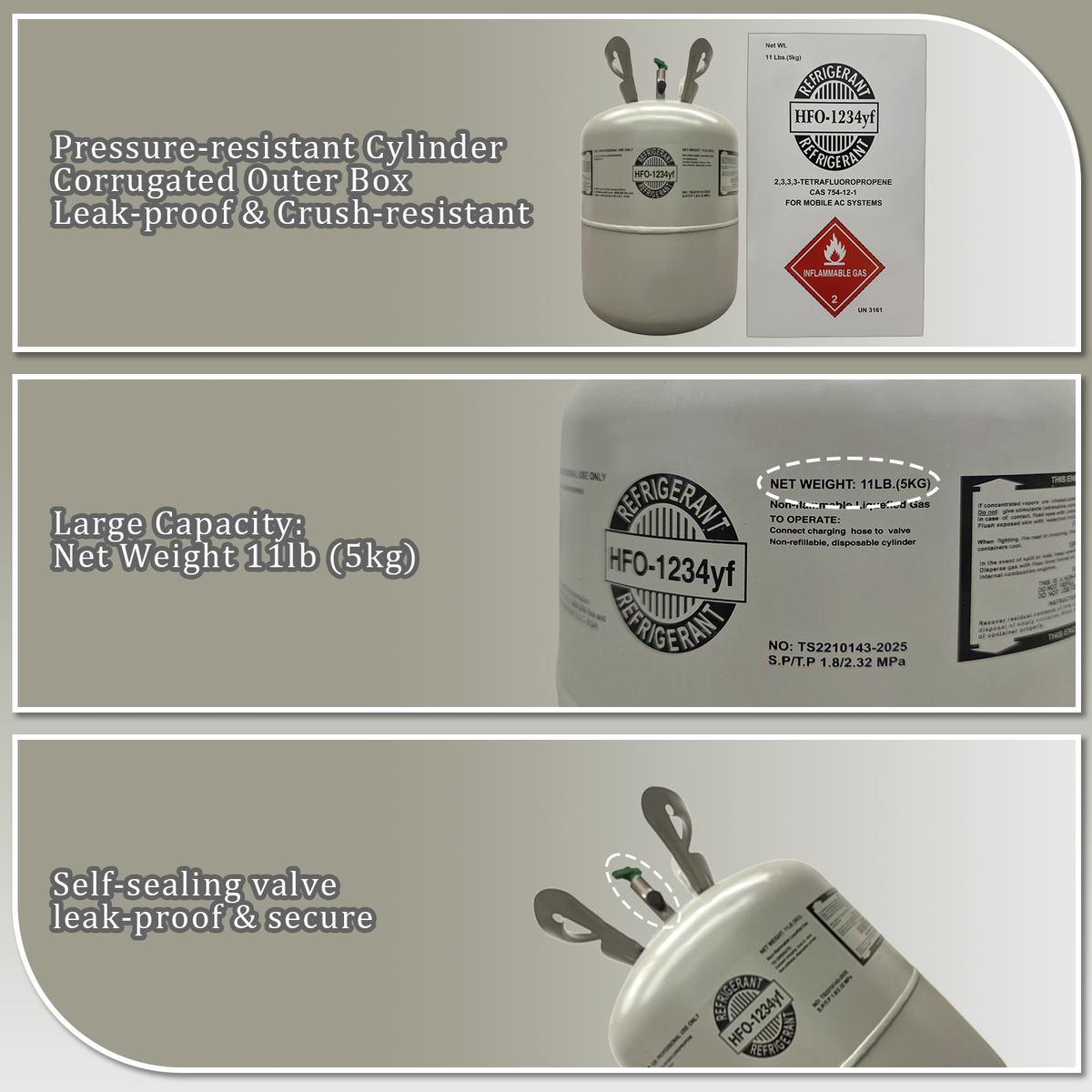

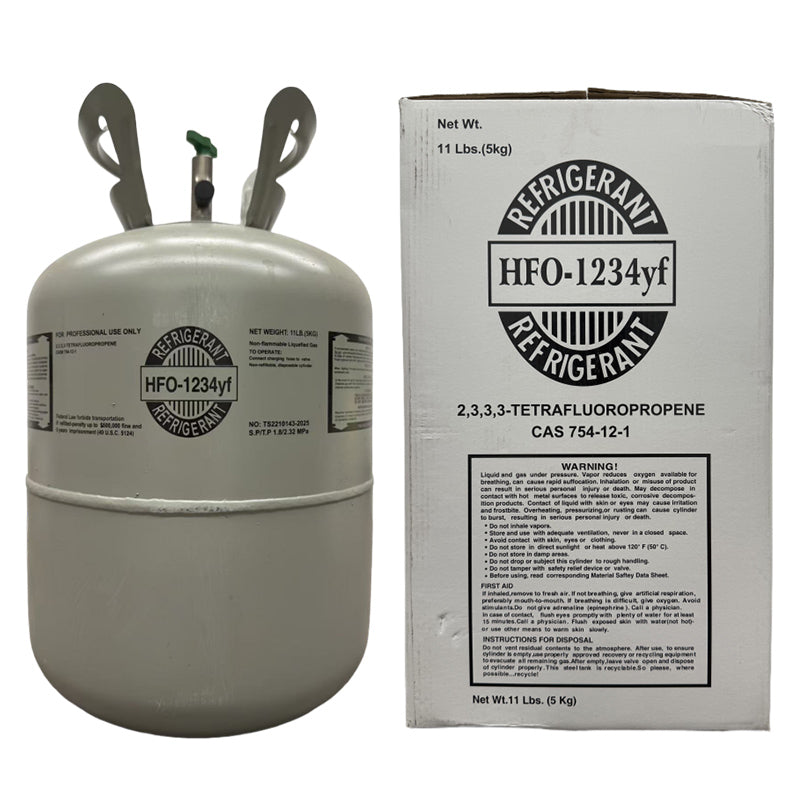

Product Features

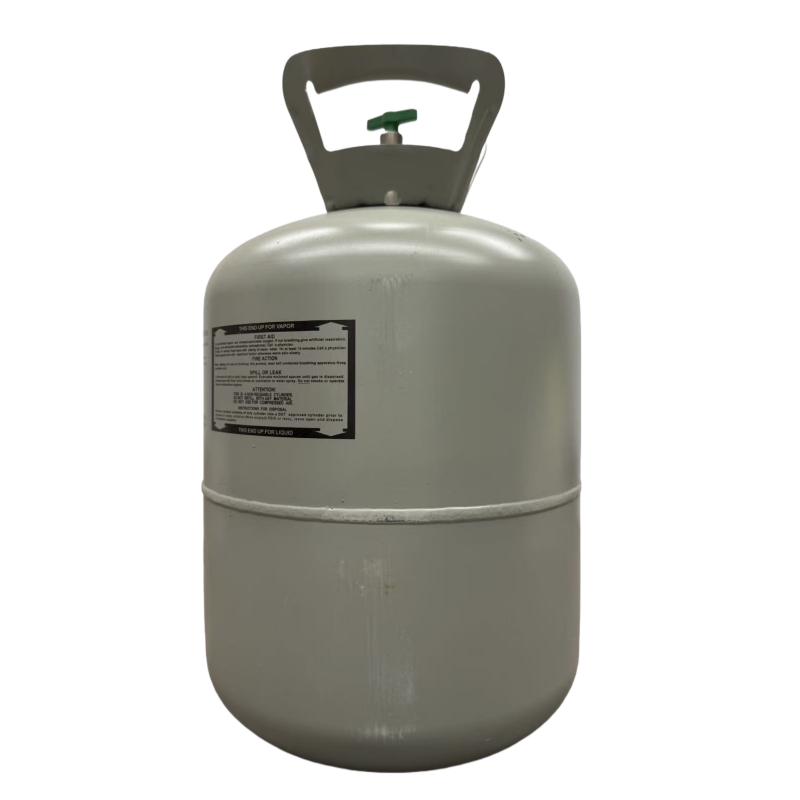

Pressure-Resistant Cylinder: The cylinder is built with a pressure-resistant structure to support stable handling during transportation, storage, and routine service use. This design helps reduce the risk of deformation caused by external pressure.

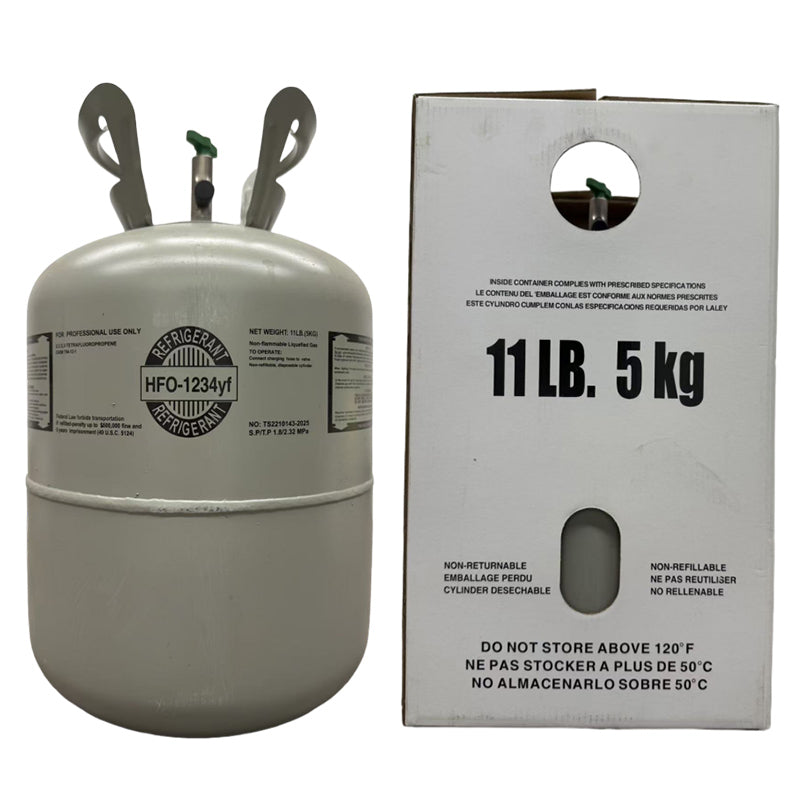

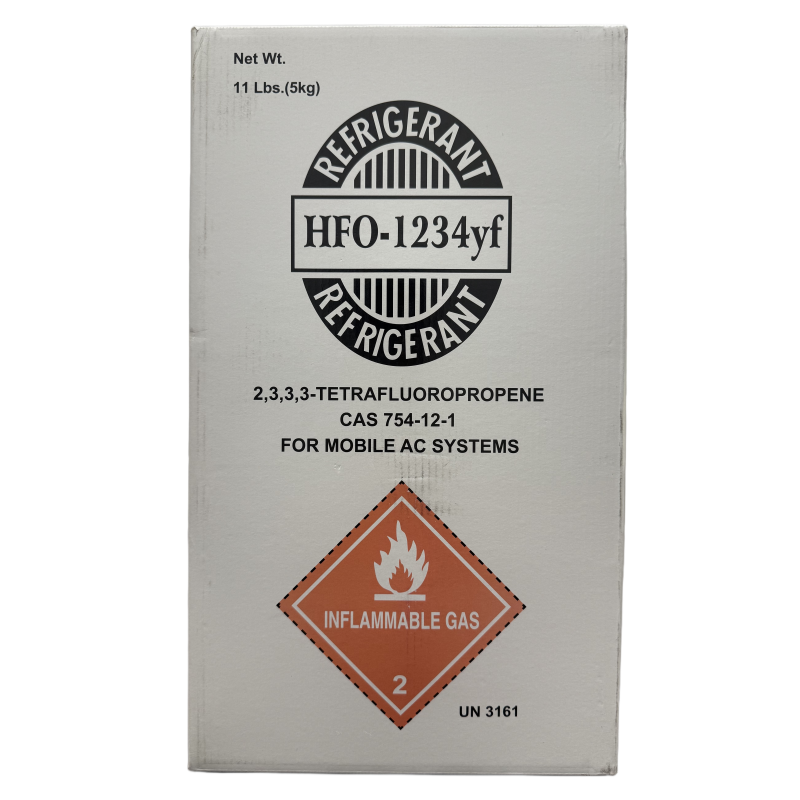

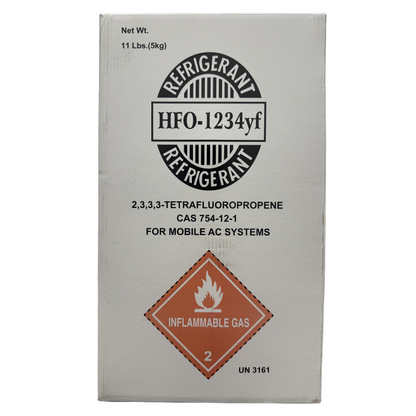

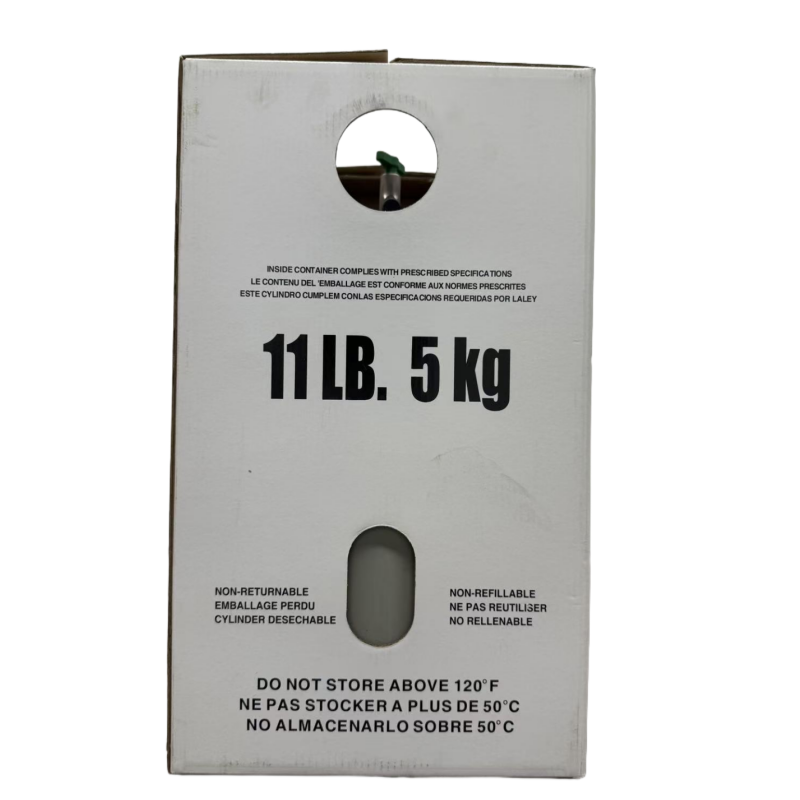

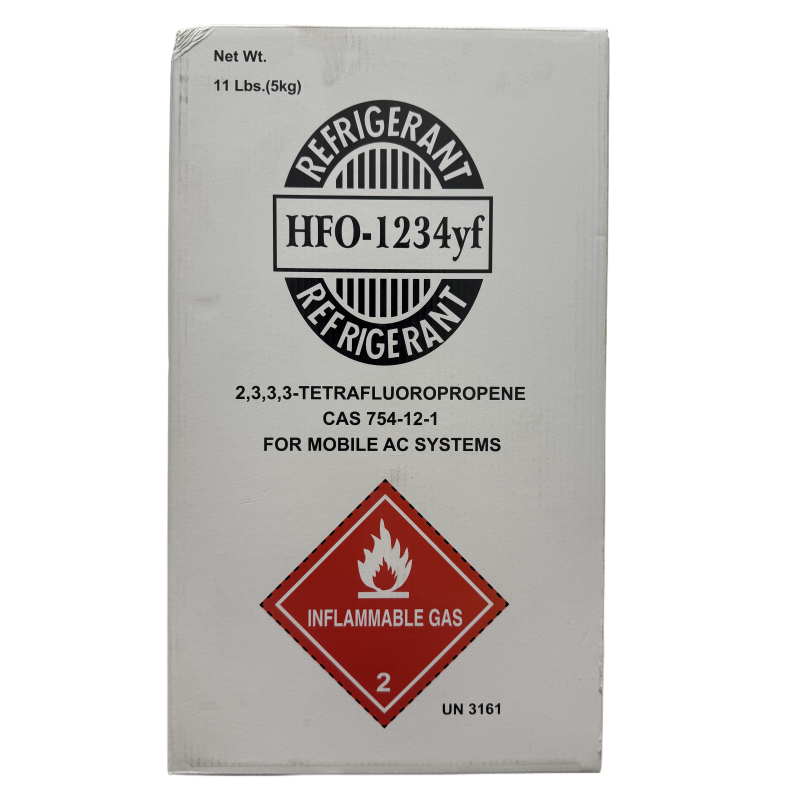

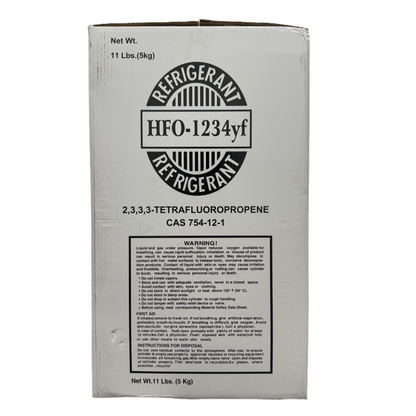

Corrugated Outer Box: A corrugated outer box provides extra protection during shipping and warehousing. It helps reduce scratches, dents, and other surface damage while the product is being moved or stacked.
Protective Packaging: Leak-resistant and crush-resistant packaging gives the cylinder added protection in transit. This helps the product arrive in better condition and lowers the risk of avoidable shipping damage.
11 lb Net Weight: Net weight 11 lbs (5 kg), suitable for compatible existing systems that require R1234yf for service and maintenance.
Self-Sealing Valve: The self-sealing valve design supports safer storage and easier handling. It helps reduce the chance of unintended leakage during storage or service preparation.
Protective Top Collar: The top collar helps shield the valve area from impact during movement and storage, making the cylinder easier to handle and better protected overall.
Usage Scenarios
NEV Thermal Management: R1234yf may be used in certain new energy vehicle thermal management and mobile cooling systems where the vehicle manufacturer specifies R1234yf as the correct refrigerant for approved operation and service.

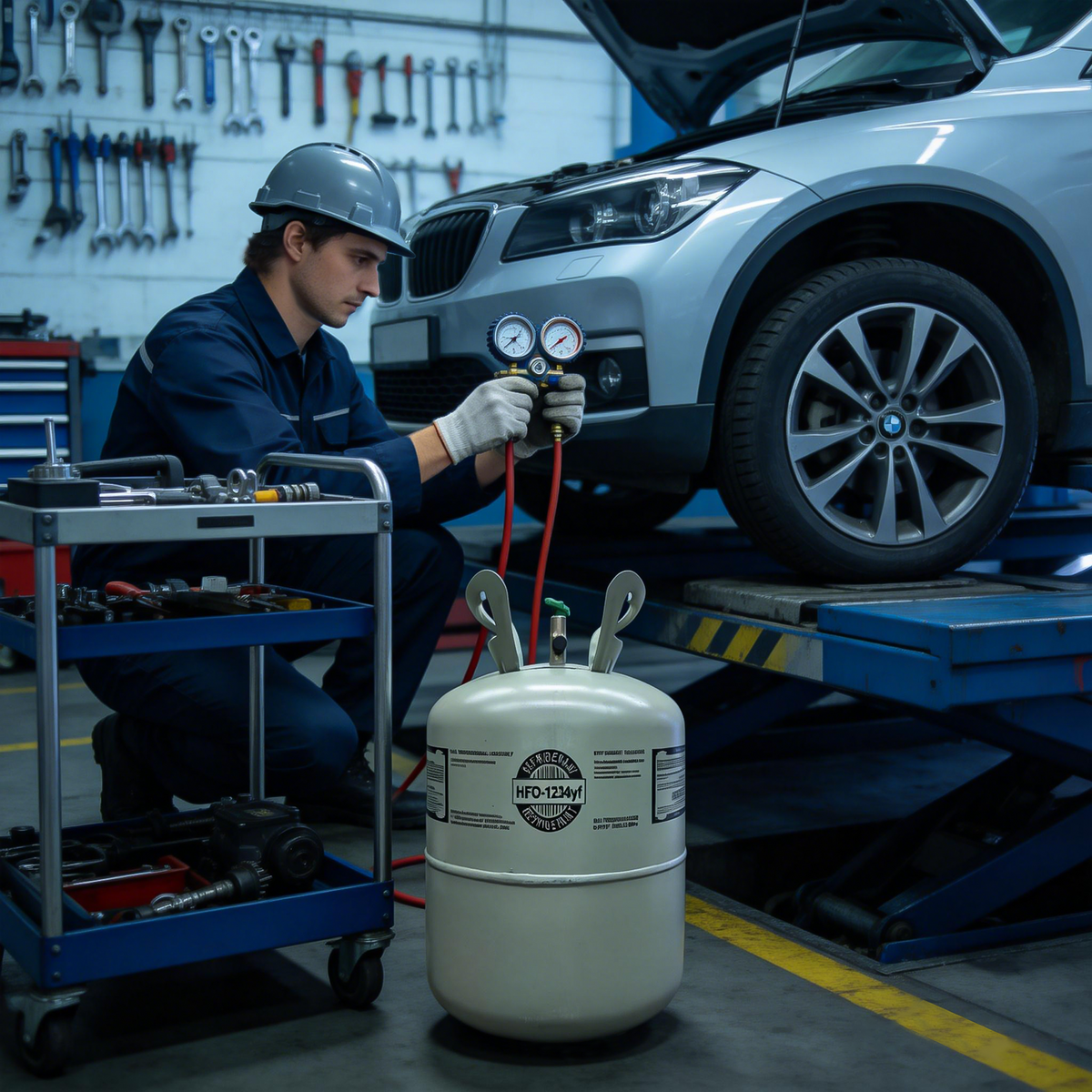

AC Refrigerant Service: R1234yf is commonly used in professional automotive A/C service work, including recharge, leak inspection, repair, and routine maintenance for compatible systems originally designed for R1234yf operation.
Vehicle Air Conditioning: R1234yf is widely used in modern vehicle air-conditioning systems specifically built for this refrigerant. It is commonly found in passenger vehicle A/C applications where approved equipment and service procedures are required.
These are common examples of where R1234yf may be used. Actual use depends on vehicle design, system requirements, refrigerant compatibility, and applicable safety procedures. Buyers should always confirm that their equipment is specifically designed for R1234yf before purchase or use.
Professional Use
R1234yf is commonly used in professional service and maintenance work for vehicle air-conditioning systems that were originally designed for this refrigerant. For many modern automotive A/C systems already in operation, it remains the correct choice when recharge, servicing, or routine upkeep is required.
In real service scenarios, R1234yf is often used during inspection, leak-related service, refrigerant recovery, recharge procedures, and general A/C maintenance on compatible vehicle systems. This is especially common in passenger vehicles originally built around R1234yf from the start.
Because R1234yf is classified as an A2L refrigerant, careful handling during service is important. Using proper service equipment, following correct procedures, and confirming system requirements before work begins can help support safer maintenance and more reliable system operation.
This product is generally intended for use in compatible vehicle A/C systems and is typically handled by qualified technicians. Buyers should always confirm system requirements and refrigerant compatibility before purchase or use.
