Key Specifications

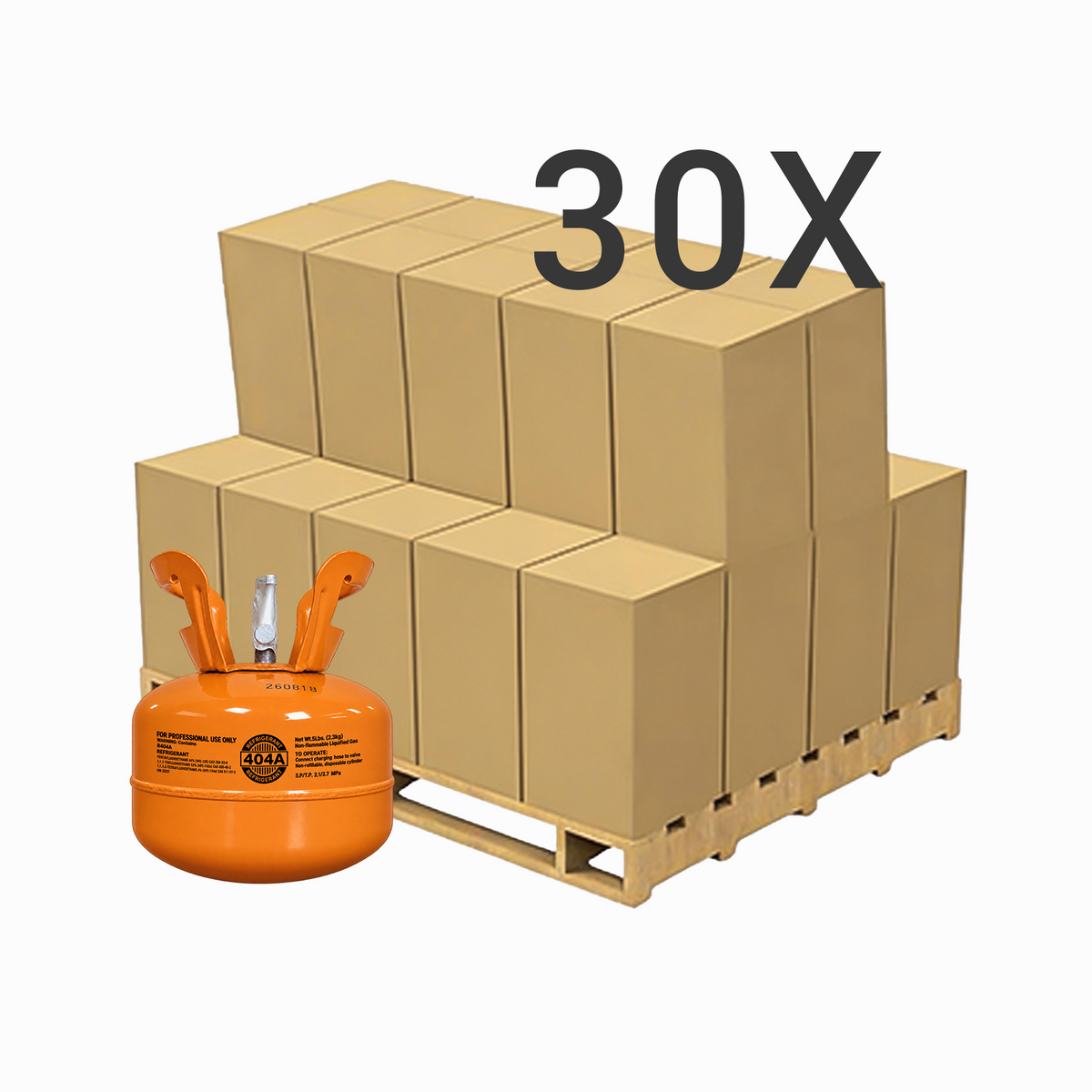

This compact 5 lb R404A refrigerant cylinder is designed for compatible commercial refrigeration systems, ideal for smaller repairs, routine maintenance, and minor refrigerant top-offs.
Chemical name: Blend of R125 / R143a / R134a
Chemical formula: C2HF5 / C2H3F3 / C2H2F4
Blend composition: 44/52/4 wt%
Molecular weight: 97.6
Boiling point: -46.5°C
Liquid density at 25°C: 1048 kg/m³
Critical temperature: 72.1°C
Critical pressure: 3.732 MPa abs
Safety class: A1, non-flammable
GWP (AR4): 3922
ODP: 0
Typical applications: Low- and medium-temperature commercial refrigeration
Approx. cylinder size: 9.4 in height × 7.9 in width
Net weight: 5 lbs (2.3 kg)
Product Features
Pressure-Resistant Cylinder: The cylinder is built with a pressure-resistant structure to support stable handling during transportation, storage, and routine service use. This design helps reduce the risk of deformation caused by external pressure.
Corrugated Outer Box: A corrugated outer box provides extra protection during shipping and warehousing. It helps reduce scratches, dents, and other surface damage while the product is being moved or stacked.
Protective Packaging: Leak-resistant and crush-resistant packaging gives the cylinder added protection in transit. This helps the product arrive in better condition and lowers the risk of avoidable shipping damage.
5 lb Net Weight: Net weight 5 lbs (2.3 kg), ideal for smaller repairs, routine maintenance, and minor refrigerant top-offs in compatible R404A refrigeration systems.
Self-Sealing Valve: The self-sealing valve design supports safer storage and easier handling. It helps reduce the chance of unintended leakage during storage or service preparation.
Protective Top Collar: The top collar helps shield the valve area from impact during movement and storage, making the cylinder easier to handle and better protected overall.
Usage Scenarios
Transport Refrigeration: This compact 5 lb R404A refrigerant cylinder is suitable for servicing compatible transport refrigeration systems, including refrigerated trucks and mobile cooling equipment. Its smaller capacity is convenient for minor repairs and maintenance.
Commercial Refrigeration: R404A is widely used in compatible commercial refrigeration systems, including display cases, freezers, and supermarket equipment. The 5 lb capacity is practical for smaller service jobs and minor refrigerant top-offs.
Industrial Cooling Systems: In compatible industrial cooling applications, R404A is used for low-temperature refrigeration and maintenance. The compact cylinder offers convenient handling and storage for technicians performing repairs requiring limited refrigerant quantities.
These are common examples of where R404A may be used. Actual use depends on system design, operating conditions, and refrigerant compatibility. Buyers should always confirm that their equipment is specifically designed for R404A before purchase or use.
Professional Use
This compact 5 lb R404A refrigerant cylinder is designed for professional service and maintenance of compatible commercial refrigeration systems. Its smaller capacity makes it a practical option for technicians handling minor repairs, routine maintenance, and smaller refrigeration jobs.
In actual service scenarios, R404A is used during maintenance, repair work, and refrigerant-related procedures on compatible equipment. The 5 lb capacity provides a convenient quantity for smaller service jobs and minor refrigerant top-offs without requiring a larger cylinder.
For technicians working with existing R404A refrigeration systems, the compact cylinder is easier to transport, handle, and store than larger containers. Proper service equipment, liquid-phase charging, and following manufacturer procedures help maintain the correct refrigerant blend composition.
This product is intended for compatible existing R404A systems and should be handled by appropriately certified technicians. Buyers should confirm refrigerant compatibility, equipment requirements, and applicable service regulations before purchase or use.
