Key Specifications

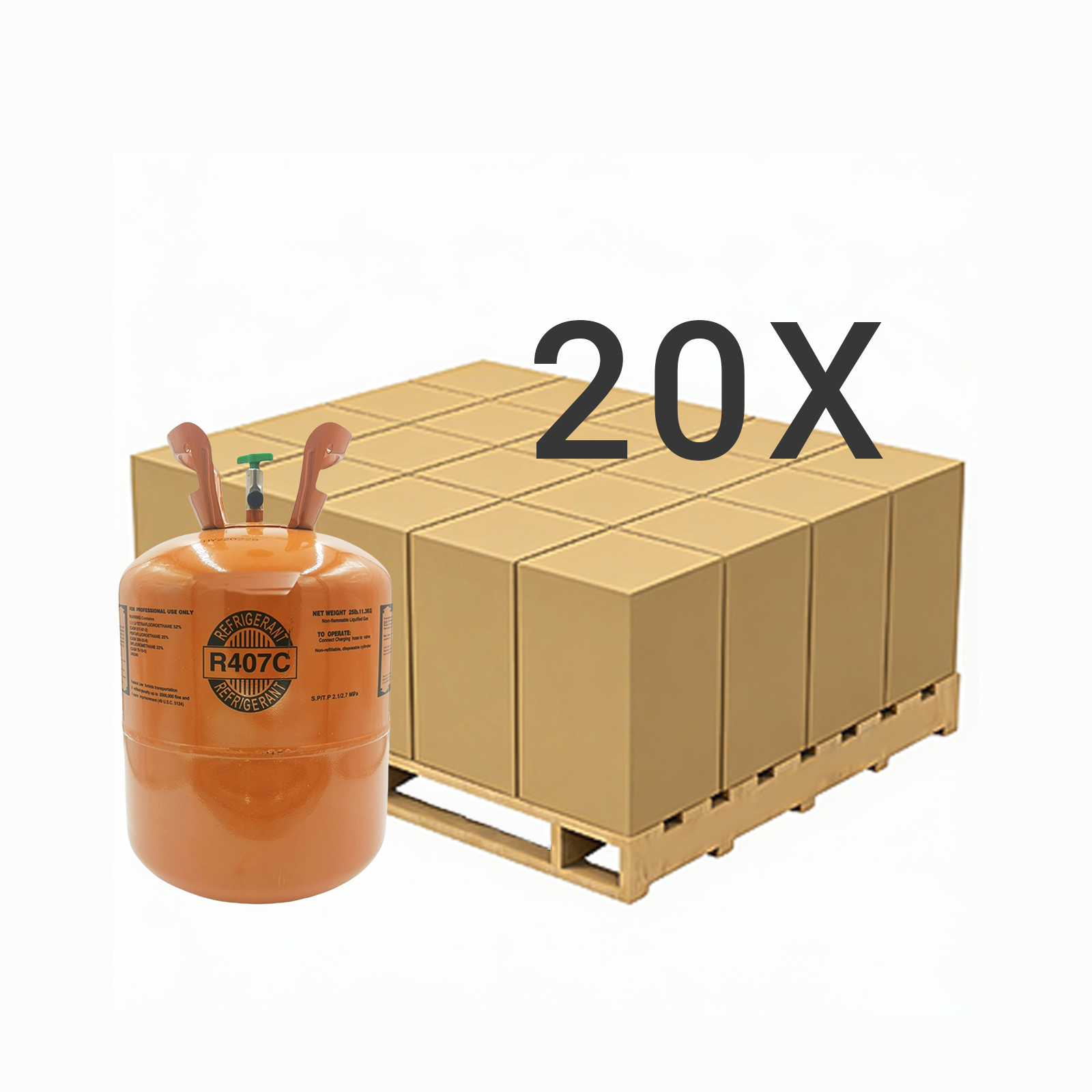

This R407C refrigerant cylinder is designed for compatible air conditioning, heat pump, and refrigeration systems approved for R407C service and maintenance.
Chemical name: R32 / R125 / R134a blend
Chemical formula: R32/R125/R134a (23/25/52 wt%)
Molecular weight: 86.2
Boiling point: -43.56°C
Liquid density at 25°C: 1134 kg/m³
Critical temperature: 86.74°C
Critical pressure: 4.619 MPa abs
Safety class: A1, non-flammable
GWP (AR4): 1774
ODP: 0
Typical applications: New equipment and service refrigerant for existing HCFC-22 A/C, heat pumps, and medium-temperature refrigeration
Approx. cylinder size: 16.5 in height × 9.8 in width
Mouth width: 6.3 in
Net weight: 25 lb (11.3 kg)
Product Features
Pressure-Resistant Cylinder: The cylinder is built with a pressure-resistant structure to support stable handling during transportation, storage, and routine service use. This design helps reduce the risk of deformation caused by external pressure.
Corrugated Outer Box: A corrugated outer box provides extra protection during shipping and warehousing. It helps reduce scratches, dents, and other surface damage while the product is being moved or stacked.
Protective Packaging: Leak-resistant and crush-resistant packaging gives the cylinder added protection in transit. This helps the product arrive in better condition and lowers the risk of avoidable shipping damage.
25 lb Net Weight: Net weight 25 lbs (11.3 kg), suitable for compatible existing systems that require R407C for service and maintenance.
Self-Sealing Valve: The self-sealing valve design supports safer storage and easier handling. It helps reduce the chance of unintended leakage during storage or service preparation.
Protective Top Collar: The top collar helps shield the valve area from impact during movement and storage, making the cylinder easier to handle and better protected overall.
Usage Scenarios
Air Conditioners: R407A is commonly used in compatible air conditioning and refrigeration systems where medium-temperature cooling performance is required. In some applications, it may also be used in retrofit work for certain existing systems originally operating with other refrigerants.
Heat Pumps: R407A may also be used in compatible heat pump systems and related cooling equipment where the system design, refrigerant requirements, and operating conditions are suitable for this refrigerant blend.
Chillers & HVAC Applications: In compatible chillers and HVAC applications, R407A is often used where reliable cooling performance is needed in systems approved or adjusted for R407A service. Actual suitability depends on system design and refrigerant compatibility.
These are common examples of where R407A may be used. Actual use depends on system design, operating conditions, lubricant requirements, refrigerant compatibility, and equipment approval. Buyers should always confirm that their equipment is suitable for R407A before purchase or use.
Professional Use
R407C is commonly used in professional service work for air conditioning, heat pump, and cooling systems approved for this refrigerant. In many compatible systems still in operation, it remains a practical option when regular servicing, inspection, or system upkeep is required.
In actual service scenarios, R407C is typically handled during maintenance, repair work, and refrigerant-related procedures on compatible equipment approved for R407C. This is common in both systems originally designed for R407C and certain existing R22 systems that have been properly modified for retrofit use.
Because R407C is a blended refrigerant, proper handling during service is important. Using correct tools, following approved procedures, and confirming equipment requirements before work begins can help support dependable servicing and stable system operation.
This product is generally intended for use in equipment approved for R407C and is typically handled by qualified technicians. Buyers should always confirm system requirements, refrigerant compatibility, lubricant requirements, and applicable service practices before purchase or use.
